Thiết lập PXE Boot Server cài đặt Ubuntu 20.04 qua mạng cho UEFI

1
total 102668
2
-rw-r--r-- 1 root root   955656 Dec 22 06:26 bootx64.efi
3
-rw-r--r-- 1 root root  1484680 Dec 22 06:03 grubx64.efi
4
-r--r--r-- 1 root root 86448612 Dec 22 06:29 initrd
5
-r--r--r-- 1 root root   120820 Aug 31 07:37 ldlinux.c32
6
-rw-r--r-- 1 root root    43140 Dec 23  2019 pxelinux.0
7
drwxr-xr-x 2 root root     4096 Dec 22 01:43 pxelinux.cfg
8
-rw-r--r-- 1 root root  2395475 Dec 22 06:04 unicode.pf2
9
-r--r--r-- 1 root root 13660416 Dec 22 06:29 vmlinuz

1
set default="0"
2
set timeout=5
3

4
if loadfont unicode ; then
5
  set gfxmode=auto
6
  set locale_dir=$prefix/locale
7
  set lang=en_US
8
fi
9
terminal_output gfxterm
10

11
set menu_color_normal=white/black
12
set menu_color_highlight=black/light-gray
13

14
function gfxmode {
15
        set gfxpayload="${1}"
16
        if [ "${1}" = "keep" ]; then
17
                set vt_handoff=vt.handoff=7
18
        else
19
                set vt_handoff=
20
        fi
21
}
22

23
set linux_gfx_mode=keep
24

25
export linux_gfx_mode
26

27

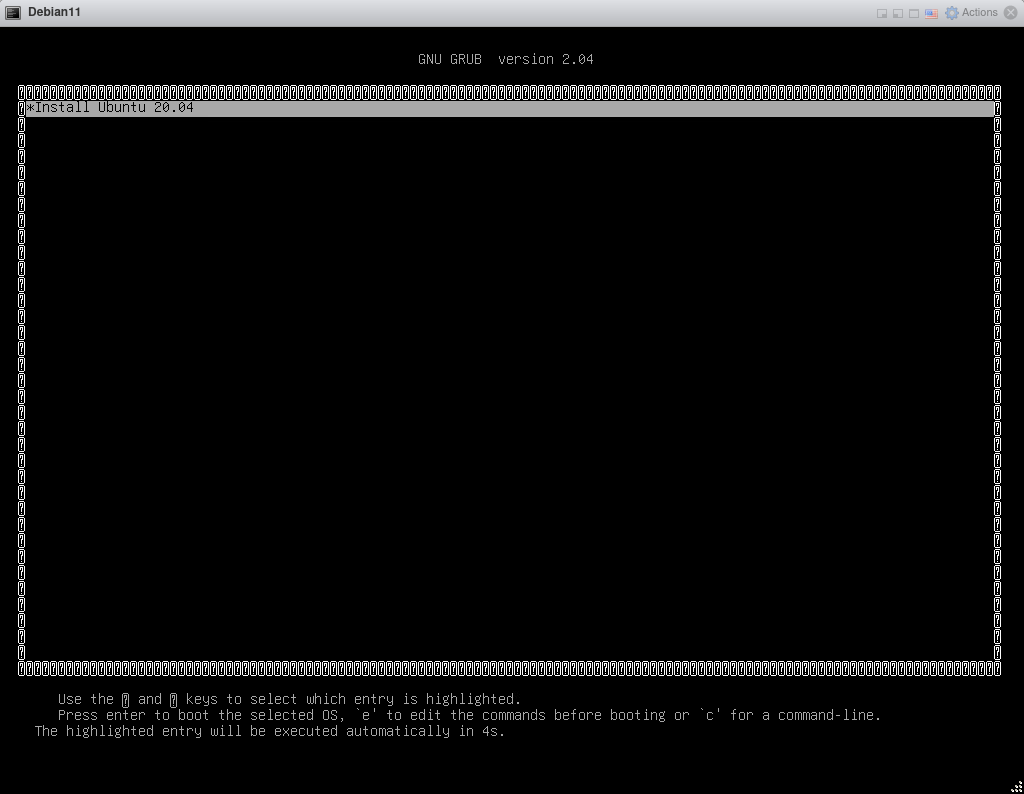

menuentry 'Install Ubuntu 20.04' {
28
        #gfxmode $linux_gfx_mode
29
        linux vmlinuz  ip=dhcp  url=http://192.168.0.139/images/ubuntu-20.04.5-live-server-amd64.iso fsck.mode=skip
30
        initrd initrd
31
}

1
allow bootp;
2
allow booting;
3
max-lease-time 1200;
4
default-lease-time 900;
5
log-facility local7;
6

7
option ip-forwarding    false;
8
option mask-supplier    false;
9

10
set pxetype = option pxe-system-type;
11

12
   subnet 192.168.0.0 netmask 255.255.255.0 {
13

14
       option routers 192.168.0.1;
15
       option domain-name-servers 1.1.1.1;
16
       range 192.168.0.200 192.168.0.222;
17
       class "pxeclients" {
18
          match if substring (option vendor-class-identifier, 0, 9) = "PXEClient";
19
          next-server 192.168.0.150;
20
          if pxetype=00:06 or pxetype=00:07 {
21
             filename "bootx64.efi";
22
          }
23
          else {
24
             filename "pxelinux.0";
25
          }
26
       }
27
}
